可对样品同时进行温度、湿度、振动、冲击以及加速度等气象环境应力及物理环境应力测试。

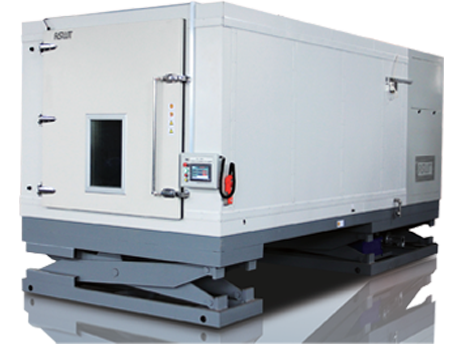

ZS can simultaneously test the temperature, humidity, vibration, impact, acceleration and other meteorological environmental stress and physical stress of samples.
型号 Model | ZS-0350 | ZS-0600 | ZS-1000 | ZS-1600 | |||
工作室容积(升)Test Space Volume(L) | 343 | 576 | 1000 | 1584 | |||
工作室尺寸(mm) Test Space Dimensions |
W | 630 | 800 | 1000 | 1200 | ||
D | 700 | 800 | 1000 | 1200 | |||
H | 780 | 900 | 1000 | 1100 | |||
温度范围 Temp. Range | -70℃~+180℃ | ||||||
温度波动范围 Temp. Fluctuation | ≤±0.5℃ | ||||||
升温速率 Heating Rate | 1.0~3.0℃/min (或根据用户要求/or according to the customer's requirement) | ||||||
降温速率 Cooling Rate | 0.7~1.2℃/min (或根据用户要求/or according to the customer's requirement) | ||||||
湿度范围 Humidity R ange | 10%RH~98%RH |
备注
1.设备性能在环境温度+25℃,相对湿度65%RH下,无负载所测。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
