采用模拟全阳光光谱的氙弧灯来再现不同环境下存在的破坏性光波。可以为科研、产品开发和质量控制提供相应的环境模拟和加速试验。
除了进行光降解测试以外,氙灯耐气候试验箱还可以通过增加湿气和水喷淋选件模拟室外湿气对材料的破坏影响。

L-SUN reproduces the destructive light wave in different environments with the xenon arc lamp that can stimulate full sun spectrum and can provide corresponding environment stimulation and acceleration tests for scientific research, product development and quality control.

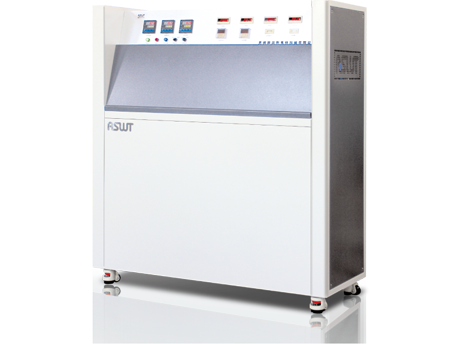

In addition to light degradation test, xenon-lamp weather-resistant test chamber can also stimulate the destructive effects of outdoor humidity on materials by increasing moisture and water spraying options.



工作室尺寸(mm)Test Space Dimensions 450×1170×500 (D×W×H)(mm)
外形尺寸 Overall Dimensions 500×1308×1480(D×W×H)(mm)
样品夹数量 Sample Holder Number 26 pieces
样品夹尺寸 Sample Holder Size 70W*185H*15D mm
温度范围 Temp. Range RT+10~+70℃
温度波动度 Temp.  Fluctuation ≤±0.5℃
温度均匀度 Temp. Uniformity ≤2.0℃
灯管中心距离 Distance Between Tubes 66mm
试品与灯光中心距离 Distance Beteewn Sample And Tube 68mm
湿度范围 Humidity Range 95%~100% RH
湿度误差 Humidity Diviation +2/-3% RH
波长范围 Wavelength Region 295~365nm
额定电压Nominal Voltage AC220V±10%,50Hz
功率 Power 2.5(kW)
重量 Weight (kg) 180(kg)

备注
1.设备性能在环境温度+25℃,相对湿度65%RH下,无负载所测。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
