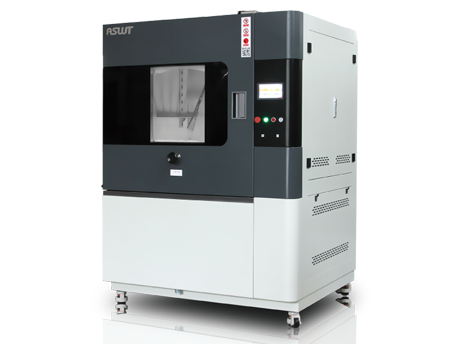

IP-S系列防尘试验装置可对样品进行粉尘(滑石粉、亚利桑那砂等)试验,适用于确定防止粉尘进入保护罩、壳体和密封垫圈的有效性,设备暴露于粉尘中以及设备暴露之后满足其性能的能力,由于进入粉尘后造成设备的任何物理损坏,设备包装的有效性等。
试验粉尘:滑石粉、波特兰水泥、亚利桑那试验粉尘
试验标准:GB4208-2008/IEC60529/DIN40050-9/GB2423.37
IP - S series dust test device for dust samples (such as talcum powder sand, Arizona), applicable to determine prevent dust from entering the confinement, shell, and the effectiveness of sealing washer, and equipment in the equipment exposed to dust exposure after's ability to meet its performance, any physical damage due to enter the dust equipment, the effectiveness of the device packaging, etc.
工作室尺寸 Test Space Dimensions | 1000×1000×1000(D×W×H)(mm) |
外形尺寸 Overall Dimensions | 1084×1400×2000(D×W×H)(mm) |
温度范围 Temp. Range | RT~60℃ |
防尘等级 Dust-proof | IP5X、IP6X |
电源电压 Power Supply | AC380V±10%,50Hz |
总功率 Power | 3.5kW |
重量 Weight | 510kg |
湿度测量Humidity measurement
样品负压系统Sample negative pressure systems
